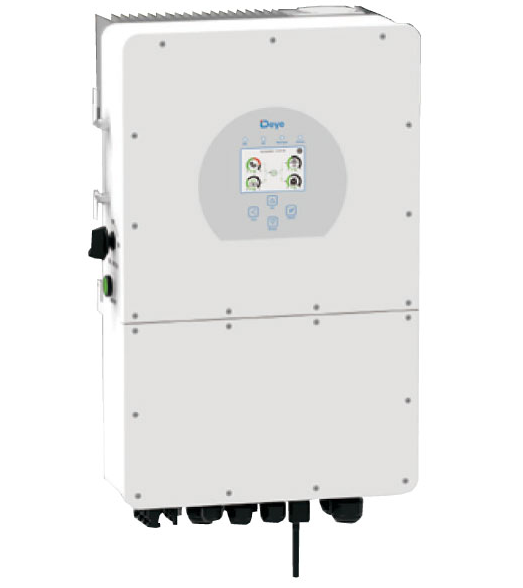

Deye 20kW HV 3 Phase Hybrid Inverter

Description

Features

• 100% unbalanced output, each phase.
• AC couple to retrofit existing solar system.
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
• Max. charging/discharging current of 50A.
• Support storing energy from diesel generator.
• High voltage battery, higher efficiency.
• 6 time periods for battery charging/discharging.

Battery Input Data

• Battery Type: Lithium-lon.
• Battery Voltage Range (V): 160~700
• Max. Charging Current (A): 37A
• Max. Discharging Current (A): 37A
• Number of Battery Input: 1
• Charging Strategy for Li-Ion Battery: Self-adaption to BMS.

PV String Input Data

• Max. DC Input Power (W): 26000W.
• Max. DC Input Voltage (V): 1000
• Start-up Voltage (V): 180
• MPPT Range (V): 150V – 850V.
• Full Load DC Voltage Range: 500V – 850V.
• Rated DC Input Voltage: 600
• PV Input Current (A): 26 +26
• Max. PV ISC (A): 39+39
• No. of MPPT Trackers: 2
• No. of strings per MPPT Tracker: 2+2

AC Output Data

• Rated AC Output and UPS Power (W): 20000.
• Max. AC Output Power (W): 22000.
• AC Output Rated Current (A): 30.4/29
• Max. AC Current (A): 33.4/31.9
• Max Three-phase Unbalanced Output Current: 35
• Generator input/Smart load /AC couple current (A): 30.4/80/30.4
• Max Continuous AC Passthrough(AC): 80
• Peak Power (off grid): 1.5 times of rated power, 10 S.
• Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
• Power Factor: 0.8 leading to 0.8 lagging.
• Grid Type: Three Phase.
• Total Harmonics Current Distortion (THDi):<3% (of nominal power)
• DC current injection:<0.5% In

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%

Protection

• Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
• Output Over Voltage Protection: DC Type II / AC Type Ⅲ

Certifications and Standards

• Grid Regulation:  IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
• Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

 General Data

• Operating Temperature Range (C): -40~60℃, >45℃ Derating
• Cooling: Smart Cooling
• Noise(dB): ≤55 dB
• Communication with BMS: CAN
• Weight (Kg): 30.5
• Size (Length x Width x Height mm): 408×638×237 (Excluding Connectors and Brackets)
• Protection Degree: IP65
• Installation Style: Wall mounted
• Warranty: 5 Years (10 Years Optional)
