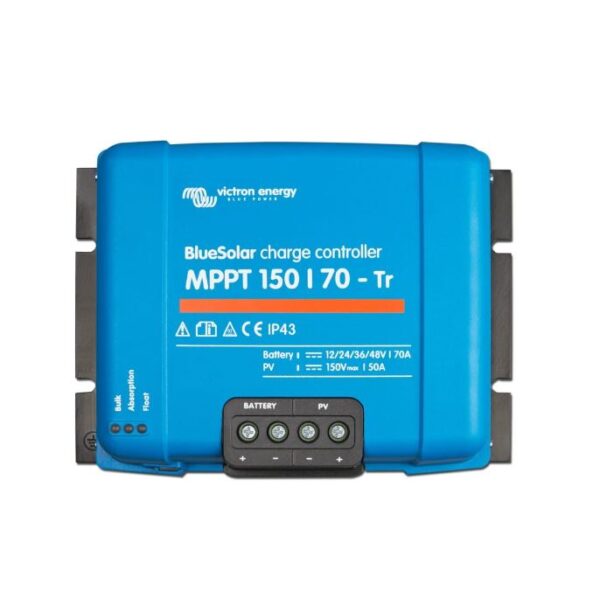

Victron BlueSolar MPPT 150/70-Tr

R4246,83

Victron BlueSolar MPPT 150/60-Tr

Victron Energy

Out of stock

SKU: VE-SCC010070200 Category: Tag:

Description

Solar charge controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.Victron-Datasheet-BlueSolar-charge-controller-MPPT-150-45-up-to-150-70-EN-



MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



Remote Monitoring and Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.

Specification:

BLUESOLAR CHARGE CONTROLLER MPPT 150/70
Battery voltage 12/24/48V Auto Select (software tool needed to select 36V)
Rated charge current 70A
Nominal PV power, 12V 1a,b) 1000W
Nominal PV power, 24V 1a,b) 2000W
Nominal PV power, 48V 1a,b) 4000W
Max. PV short circuit current 2) 50A
Maximum PV open circuit voltage 150V absolute maximum coldest conditions
145V start-up and operating maximum
Maximum efficiency 98%
Self-consumption 10 mA
Charge voltage ‘absorption’ Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable)
Charge voltage ‘float’ Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / -32 mV / -64 mV / °C
Protection Battery reverse polarity (fuse, not user accessible)
PV reverse polarity / Output short circuit / Over temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Data comm. port and remote on-off VE.Direct (see the data communication whitepaper on our website)
Parallel operation Yes (not synchronized)
ENCLOSURE
Colour Blue (RAL 5012)
PV terminals 3) 35 mm² / AWG2 (Tr models)
Two sets of MC4 connectors
Battery terminals 35 mm² / AWG2
Protection category IP43 (electronic components), IP22 (connection area)
Weight 3kg
Dimensions (h x w x d) in mm Tr models: 185 x 250 x 95 MC4 models: 215 x 250 x 95
STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
