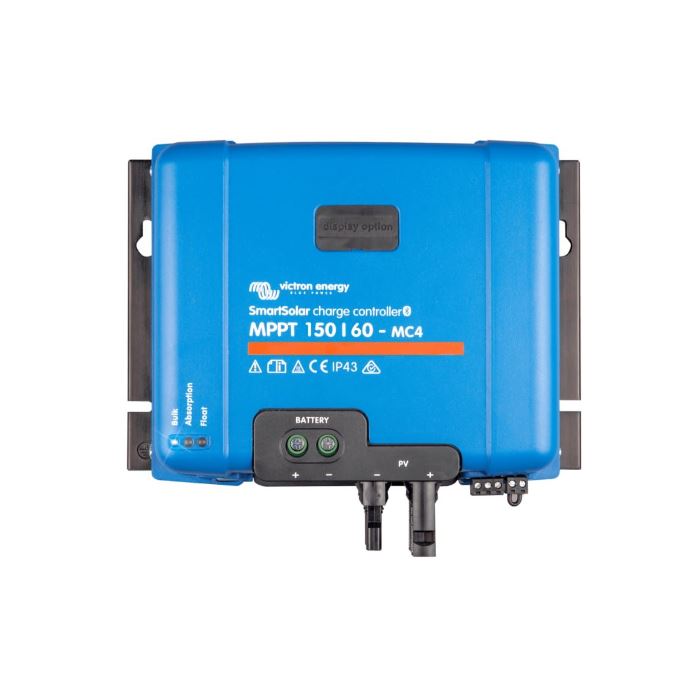

Victron SmartSolar MPPT 150/60-MC4

R4246,83

Victron SmartSolar MPPT 150/60-MC4

Victron Energy





SKU: VE-SCC115060310 Category: Tag:

Description

Solar charge controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

Specification:

SMARTSOLAR CHARGE CONTROLLER 150/60
Battery voltage 12 / 24 / 48V Auto Select (software tool needed to select 36V)
Rated charge current 60A
Nominal PV power, 12V 860W
Nominal PV power, 24V 1720W
Nominal PV power, 36V 2580W
Nominal PV power, 48V 3440W
Max. PV short circuit current 50A (max 30A per MC4 conn.)
Maximum PV open circuit voltage 150V absolute maximum coldest conditions
145V start-up and operating maximum
Maximum efficiency 98%
Self-consumption Less than 35mA @ 12V / 20mA @ 48V
Charge voltage ‘absorption’ Default setting: 14,4 / 28,8 / 43,2 / 57,6V
(adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage ‘float’ Default setting: 13,8 / 27,6 / 41,4 / 55,2V
(adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage ‘equalization’ Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable)
Charge algorithm multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
Temperature compensation -16 mV / -32 mV / -64 mV / °C
Protection Battery reverse polarity (fuse, not user accessible)
PV reverse polarity / Output short circuit / Over temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95% non-condensing
Maximum altitude 5000m (full rated output up to 2000m)
Environmental condition Indoor, unconditioned
Pollution degree PD3
Data communication port VE.Direct or Bluetooth
Remote on/off Yes (2 pole connector)
Programmable relay DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC
Parallel operation Yes (not synchronized)
ENCLOSURE
Colour Blue (RAL 5012)
PV terminals 35 mm² / AWG2 (Tr models)
Two pairs of MC4 connectors (MC4 models)
Battery terminals 35mm² / AWG2
Protection category IP43 (electronic components), IP22 (connection area)
Weight 3 kg
Dimensions (h x w x d) in mm Tr models: 185 x 250 x 95 mm
MC4 models: 215 x 250 x 95 mm
STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
