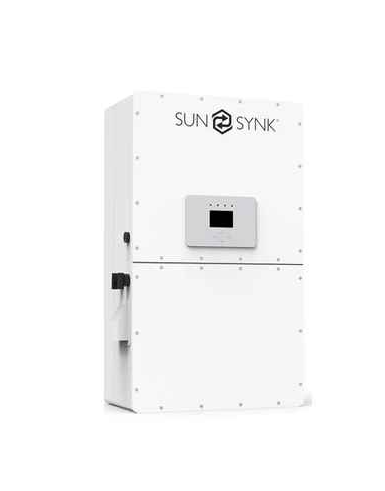

Sunsynk 50kW – Three Phase Hybrid Inverter

Description

The Sunsynk Three-Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.

Product Features:

• INTERACTIVE
• Easy and straightforward to understand LCD display
• Supporting Wi-Fi or GSM monitoring
• Visual power flow screen
• Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker
• Smart settable 3-stage MPPT charging for optimised battery performance
• Auxiliary load function
• Multi-inverter function: grid-tied and off-grid
• COMPATIBLE
• Compatible with mains electrical grid voltages or power generators
• Compatible with wind turbines
• 230V/400V Three-phase Pure Sinewave Inverter
• It can power up both single-phase and 3-phase loads
• Self-consumption and feed-in to the grid
• Auto restart while AC is recovering
• Maximum charging/discharging current of 50A + 50A
• DC and AC coupled to retrofit existing solar system
• Compatible with high-voltage batteries (600V)

Specifications:

•  Weight: – 75 kg
• Rated Power: – 50,000W
• Min PPT Voltage: – 150V
• Max PPT Voltage: – 850V
• DC Startup Voltage: – 180V
• DC Shutdown Voltage: – 150V
• Max Input Voltage: – 1,000V
• Max DC Power: – 65,000W
• Max AC Power (5 Minutes): – 55,000W
• Surge AC Power (1 Second): – 75,000W
• Max DC Current: – 144A
• Max DC Inputs: – 8
• Has DC Fuses: – 0
• Connector: – MC4
• Included Connectors: – 0
• Euro Efficiency: – 99.9%
• Transformer: – None
• MPPT Quantity : – 4
• Has Integrated DC Switch: – Yes
• Warranty: – 5 years
